简介

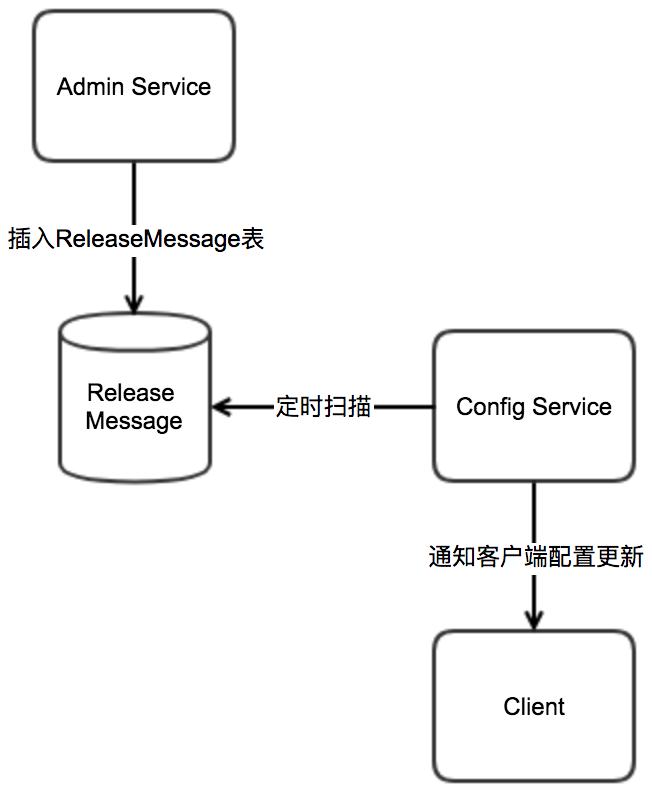

该节我们继续研发关注的配置中心的一个核心流程--client接收配置变更。下面是官方设计文档里流程图，它说明了Apollo发布通知的大致流程。
下面我们更加具体地分析Apollo的配置通知。
发布消息的数据库消息队列实现
在admin-service的release接口最后，完成消息保存后，会调用MessageSender的sendMessage发布配置发布消息。
看看MessageSender的实现DatabaseMessageSender干了什么。
public class DatabaseMessageSender implements MessageSender {
private static final Logger logger = LoggerFactory.getLogger(DatabaseMessageSender.class);
private static final int CLEAN_QUEUE_MAX_SIZE = 100;
private final BlockingQueue<Long> toClean = Queues.newLinkedBlockingQueue(CLEAN_QUEUE_MAX_SIZE);
private final ExecutorService cleanExecutorService;
private final AtomicBoolean cleanStopped;
private final ReleaseMessageRepository releaseMessageRepository;
public DatabaseMessageSender(final ReleaseMessageRepository releaseMessageRepository) {
cleanExecutorService = Executors.newSingleThreadExecutor(ApolloThreadFactory.create("DatabaseMessageSender", true));
cleanStopped = new AtomicBoolean(false);
this.releaseMessageRepository = releaseMessageRepository;
}
@Override
@Transactional
public void sendMessage(String message, String channel) {
//省略
//保存releaseMessage
ReleaseMessage newMessage = releaseMessageRepository.save(new ReleaseMessage(message));
//往队列里增加一个删除标记，有一个线程不停扫描表（队列空了隔5秒），扫描同namespace下小于当前消息id的消息，删除历史消息
if(!toClean.offer(newMessage.getId())){
logger.warn("Queue is full, Failed to add message {} to clean queue", newMessage.getId());
}
//省略
}
//省略其他方法
}
读取数据库消息
ReleaseMessageScanner负责读取数据库里的消息表，主要做了两个事情：
- 定时扫描ReleaseMessage表
- 将发布消息通知ReleaseMessageListener
我们来看看其实现：
public class ReleaseMessageScanner implements InitializingBean {
//省略
@Override
public void afterPropertiesSet() throws Exception {
//扫描间隔，100ms
databaseScanInterval = bizConfig.releaseMessageScanIntervalInMilli();
//找到最大的消息id
maxIdScanned = loadLargestMessageId();
executorService.scheduleWithFixedDelay(() -> {
Transaction transaction = Tracer.newTransaction("Apollo.ReleaseMessageScanner", "scanMessage");
try {
//
scanMissingMessages();
scanMessages();
transaction.setStatus(Transaction.SUCCESS);
} catch (Throwable ex) {
transaction.setStatus(ex);
logger.error("Scan and send message failed", ex);
} finally {
transaction.complete();
}
}, databaseScanInterval, databaseScanInterval, TimeUnit.MILLISECONDS);
}
/**
* add message listeners for release message
* @param listener
*/
public void addMessageListener(ReleaseMessageListener listener) {
if (!listeners.contains(listener)) {
listeners.add(listener);
}
}
/**
* Scan messages, continue scanning until there is no more messages
*/
private void scanMessages() {
boolean hasMoreMessages = true;
while (hasMoreMessages && !Thread.currentThread().isInterrupted()) {
hasMoreMessages = scanAndSendMessages();
}
}
/**
* scan messages and send
*
* @return whether there are more messages
*/
private boolean scanAndSendMessages() {
//current batch is 500
//拉取大于当前最大id的500条
List<ReleaseMessage> releaseMessages =
releaseMessageRepository.findFirst500ByIdGreaterThanOrderByIdAsc(maxIdScanned);
if (CollectionUtils.isEmpty(releaseMessages)) {
return false;
}
//触发所有ReleaseMessageListener执行
fireMessageScanned(releaseMessages);
int messageScanned = releaseMessages.size();
long newMaxIdScanned = releaseMessages.get(messageScanned - 1).getId();
// check id gaps, possible reasons are release message not committed yet or already rolled back
//存在一些消息”看不见“，可能是没commit或者rollback了，针对这些消息加到下一次扫描里，如果下一次可以找到，则补发消息。
if (newMaxIdScanned - maxIdScanned > messageScanned) {
recordMissingReleaseMessageIds(releaseMessages, maxIdScanned);
}
//记录已扫描最大id
maxIdScanned = newMaxIdScanned;
return messageScanned == 500;
}
}
触发通知
ReleaseMessageScanner会循环遍历发布消息监听器(ReleaseMessageListener)集合。
ReleaseMessageListener的实现类在ConfigServiceAutoConfiguration里初始化，我们看看它们实现了*handleMessage方法并*执行哪些操作：
- ReleaseMessageServiceWithCache：主要将Namespace的最新messageId存起来，在client请求配置时校验是否需要更新。
- GrayReleaseRulesHolder：处理、合并、持有灰度策略（GrayReleaseRule表）
// GrayReleaseRulesHolder
@Override
public void handleMessage(ReleaseMessage message, String channel) {
logger.info("message received - channel: {}, message: {}", channel, message);
String releaseMessage = message.getMessage();
if (!Topics.APOLLO_RELEASE_TOPIC.equals(channel) || Strings.isNullOrEmpty(releaseMessage)) {
return;
}
List<String> keys = ReleaseMessageKeyGenerator.messageToList(releaseMessage);
//message should be appId+cluster+namespace
if (CollectionUtils.isEmpty(keys)) {
return;
}
String appId = keys.get(0);
String cluster = keys.get(1);
String namespace = keys.get(2);
List<GrayReleaseRule> rules = grayReleaseRuleRepository
.findByAppIdAndClusterNameAndNamespaceName(appId, cluster, namespace);
mergeGrayReleaseRules(rules);
}
- ConfigService：默认是DefaultConfigService，这个阶段没操作，如果切换为ConfigServiceWithCache，则在ReleaseMessage时更新缓存。
- ConfigFileController：更新ConfigFileController里的配置缓存，client sdk会定时向这个controller里的API接口拉取配置。
- NotificationControllerV2：找到client的longPolling请求（使用springMVC的DeferredResult实现），往请求响应里返回发布通知信息。
- notificationController：已废弃，功能同V2，区别是V2能够同时处理一个client的多个longPolling监听和返回。
重点分析NotificationControllerV2的实现分析。
NotificationControllerV2的实现分析
NotificationControllerV2是Apollo配置中心实现配置监听和更新的重要接口类。我们一一看一下实现。
@RestController
@RequestMapping("/notifications/v2")
public class NotificationControllerV2 implements ReleaseMessageListener {
private static final Logger logger = LoggerFactory.getLogger(NotificationControllerV2.class);
private final Multimap<String, DeferredResultWrapper> deferredResults =
Multimaps.synchronizedSetMultimap(TreeMultimap.create(String.CASE_INSENSITIVE_ORDER, Ordering.natural()));
//GSON用
private static final Type notificationsTypeReference =
new TypeToken<List<ApolloConfigNotification>>() {
}.getType();
//
private final ExecutorService largeNotificationBatchExecutorService;
private final WatchKeysUtil watchKeysUtil;
private final ReleaseMessageServiceWithCache releaseMessageService; //获取Release配置消息的service
private final EntityManagerUtil entityManagerUtil; //数据库操作工具类
private final NamespaceUtil namespaceUtil; //namespace工具
private final Gson gson;
private final BizConfig bizConfig; //服务配置
// 省略
@GetMapping
public DeferredResult<ResponseEntity<List<ApolloConfigNotification>>> pollNotification(
@RequestParam(value = "appId") String appId,
@RequestParam(value = "cluster") String cluster,
@RequestParam(value = "notifications") String notificationsAsString,
@RequestParam(value = "dataCenter", required = false) String dataCenter,
@RequestParam(value = "ip", required = false) String clientIp) {
List<ApolloConfigNotification> notifications = null;
try {
notifications =
gson.fromJson(notificationsAsString, notificationsTypeReference);
} catch (Throwable ex) {
Tracer.logError(ex);
}
if (CollectionUtils.isEmpty(notifications)) {
throw BadRequestException.invalidNotificationsFormat(notificationsAsString);
}
//验证逻辑，对client请 求的namespace名做一些合法化处理和过滤
Map<String, ApolloConfigNotification> filteredNotifications = filterNotifications(appId, notifications);
if (CollectionUtils.isEmpty(filteredNotifications)) {
throw BadRequestException.invalidNotificationsFormat(notificationsAsString);
}
DeferredResultWrapper deferredResultWrapper = new DeferredResultWrapper(bizConfig.longPollingTimeoutInMilli());
Set<String> namespaces = Sets.newHashSetWithExpectedSize(filteredNotifications.size());
Map<String, Long> clientSideNotifications = Maps.newHashMapWithExpectedSize(filteredNotifications.size());
for (Map.Entry<String, ApolloConfigNotification> notificationEntry : filteredNotifications.entrySet()) {
String normalizedNamespace = notificationEntry.getKey();
ApolloConfigNotification notification = notificationEntry.getValue();
namespaces.add(normalizedNamespace);
clientSideNotifications.put(normalizedNamespace, notification.getNotificationId());
if (!Objects.equals(notification.getNamespaceName(), normalizedNamespace)) {
deferredResultWrapper.recordNamespaceNameNormalizedResult(notification.getNamespaceName(), normalizedNamespace);
}
}
Multimap<String, String> watchedKeysMap =
watchKeysUtil.assembleAllWatchKeys(appId, cluster, namespaces, dataCenter);
Set<String> watchedKeys = Sets.newHashSet(watchedKeysMap.values());
/**
* 1、set deferredResult before the check, for avoid more waiting
* If the check before setting deferredResult,it may receive a notification the next time
* when method handleMessage is executed between check and set deferredResult.
*/
deferredResultWrapper
.onTimeout(() -> logWatchedKeys(watchedKeys, "Apollo.LongPoll.TimeOutKeys"));
deferredResultWrapper.onCompletion(() -> {
//unregister all keys
for (String key : watchedKeys) {
deferredResults.remove(key, deferredResultWrapper);
}
logWatchedKeys(watchedKeys, "Apollo.LongPoll.CompletedKeys");
});
//register all keys
for (String key : watchedKeys) {
this.deferredResults.put(key, deferredResultWrapper);
}
logWatchedKeys(watchedKeys, "Apollo.LongPoll.RegisteredKeys");
logger.debug("Listening {} from appId: {}, cluster: {}, namespace: {}, datacenter: {}",
watchedKeys, appId, cluster, namespaces, dataCenter);
/**
* 2、check new release
接下来的代码：检查ReleaseMessage（在config-service启动加载和监听消息通知表更新），看有没有新的notification，有的话马上返回
一般在client应用启动时，或者两次longPolling间隔中会执行
*/
List<ReleaseMessage> latestReleaseMessages =
releaseMessageService.findLatestReleaseMessagesGroupByMessages(watchedKeys);
/**
* Manually close the entity manager.
* Since for async request, Spring won't do so until the request is finished,
* which is unacceptable since we are doing long polling - means the db connection would be hold
* for a very long time
*/
entityManagerUtil.closeEntityManager();
List<ApolloConfigNotification> newNotifications =
getApolloConfigNotifications(namespaces, clientSideNotifications, watchedKeysMap,
latestReleaseMessages);
if (!CollectionUtils.isEmpty(newNotifications)) {
deferredResultWrapper.setResult(newNotifications);
}
return deferredResultWrapper.getResult();
}
private List<ApolloConfigNotification> getApolloConfigNotifications(Set<String> namespaces,
Map<String, Long> clientSideNotifications,
Multimap<String, String> watchedKeysMap,
List<ReleaseMessage> latestReleaseMessages) {
List<ApolloConfigNotification> newNotifications = Lists.newArrayList();
if (!CollectionUtils.isEmpty(latestReleaseMessages)) {
Map<String, Long> latestNotifications = Maps.newHashMap();
for (ReleaseMessage releaseMessage : latestReleaseMessages) {
latestNotifications.put(releaseMessage.getMessage(), releaseMessage.getId());
}
for (String namespace : namespaces) {
long clientSideId = clientSideNotifications.get(namespace);
long latestId = ConfigConsts.NOTIFICATION_ID_PLACEHOLDER;
Collection<String> namespaceWatchedKeys = watchedKeysMap.get(namespace);
for (String namespaceWatchedKey : namespaceWatchedKeys) {
long namespaceNotificationId =
latestNotifications.getOrDefault(namespaceWatchedKey, ConfigConsts.NOTIFICATION_ID_PLACEHOLDER);
if (namespaceNotificationId > latestId) {
latestId = namespaceNotificationId;
}
}
if (latestId > clientSideId) {
ApolloConfigNotification notification = new ApolloConfigNotification(namespace, latestId);
namespaceWatchedKeys.stream().filter(latestNotifications::containsKey).forEach(namespaceWatchedKey ->
notification.addMessage(namespaceWatchedKey, latestNotifications.get(namespaceWatchedKey)));
newNotifications.add(notification);
}
}
}
return newNotifications;
}
@Override
public void handleMessage(ReleaseMessage message, String channel) {
logger.info("message received - channel: {}, message: {}", channel, message);
String content = message.getMessage();
Tracer.logEvent("Apollo.LongPoll.Messages", content);
if (!Topics.APOLLO_RELEASE_TOPIC.equals(channel) || Strings.isNullOrEmpty(content)) {
return;
}
String changedNamespace = retrieveNamespaceFromReleaseMessage.apply(content);
if (Strings.isNullOrEmpty(changedNamespace)) {
logger.error("message format invalid - {}", content);
return;
}
if (!deferredResults.containsKey(content)) {
return;
}
//create a new list to avoid ConcurrentModificationException
//找到监听namespace消息的long polling请求，然后通知他们拉配置
List<DeferredResultWrapper> results = Lists.newArrayList(deferredResults.get(content));
ApolloConfigNotification configNotification = new ApolloConfigNotification(changedNamespace, message.getId());
configNotification.addMessage(content, message.getId());
//do async notification if too many clients
//默认会进来，都是异步去发布消息
if (results.size() > bizConfig.releaseMessageNotificationBatch()) {
largeNotificationBatchExecutorService.submit(() -> {
logger.debug("Async notify {} clients for key {} with batch {}", results.size(), content,
bizConfig.releaseMessageNotificationBatch());
for (int i = 0; i < results.size(); i++) {
if (i > 0 && i % bizConfig.releaseMessageNotificationBatch() == 0) {
try {
TimeUnit.MILLISECONDS.sleep(bizConfig.releaseMessageNotificationBatchIntervalInMilli());
} catch (InterruptedException e) {
//ignore
}
}
logger.debug("Async notify {}", results.get(i));
results.get(i).setResult(configNotification);
}
});
return;
}
logger.debug("Notify {} clients for key {}", results.size(), content);
for (DeferredResultWrapper result : results) {
result.setResult(configNotification);
}
logger.debug("Notification completed");
}
//省略……
}
client侧接收通知
前面说到Client端会longPolling请求配置，或者定时拉取刷新配置，我们看看client sdk是怎么处理的，重点分析这两个类：
RemoteConfigRepository
remoteConfigReposity是Apollo client实际拉取配置的实现类，里面除了促发长轮询请求拉取配置通知外，还会定时主动请求Apollo config service更新配置。
public class RemoteConfigRepository extends AbstractConfigRepository {
private static final Logger logger = DeferredLoggerFactory.getLogger(RemoteConfigRepository.class);
private static final Joiner STRING_JOINER = Joiner.on(ConfigConsts.CLUSTER_NAMESPACE_SEPARATOR);
private static final Joiner.MapJoiner MAP_JOINER = Joiner.on("&").withKeyValueSeparator("=");
private static final Escaper pathEscaper = UrlEscapers.urlPathSegmentEscaper();
private static final Escaper queryParamEscaper = UrlEscapers.urlFormParameterEscaper();
private final ConfigServiceLocator m_serviceLocator; //从meta server或者本地配置里，（定时）获取config-service地址
private final HttpClient m_httpClient; //http client
private final ConfigUtil m_configUtil; //配置工具类
private final RemoteConfigLongPollService remoteConfigLongPollService; //负责实际执行longPolling的策略类
private volatile AtomicReference<ApolloConfig> m_configCache; // 缓存
private final String m_appId; //appId
private final String m_namespace; //namespace
protected final static ScheduledExecutorService m_executorService; //定时刷新配置的单线程池子
private final AtomicReference<ServiceDTO> m_longPollServiceDto; //获取到的config service地址
private final AtomicReference<ApolloNotificationMessages> m_remoteMessages; //当前拉取到的消息通知（标记最新版配置）
private final RateLimiter m_loadConfigRateLimiter; //拉取限流
private final AtomicBoolean m_configNeedForceRefresh; //更新配置时控制刷新频次
private final SchedulePolicy m_loadConfigFailSchedulePolicy; //拉取配置失败后的策略，默认是指数递增策略，防止拉跨config service
private static final Gson GSON = new Gson();
static {
m_executorService = Executors.newScheduledThreadPool(1,
ApolloThreadFactory.create("RemoteConfigRepository", true));
}
/**
* Constructor.
*
* @param appId the appId
* @param namespace the namespace
*/
public RemoteConfigRepository(String appId, String namespace) {
m_appId = appId;
m_namespace = namespace;
m_configCache = new AtomicReference<>();
m_configUtil = ApolloInjector.getInstance(ConfigUtil.class);
m_httpClient = ApolloInjector.getInstance(HttpClient.class);
m_serviceLocator = ApolloInjector.getInstance(ConfigServiceLocator.class);
remoteConfigLongPollService = ApolloInjector.getInstance(RemoteConfigLongPollService.class);
m_longPollServiceDto = new AtomicReference<>();
m_remoteMessages = new AtomicReference<>();
m_loadConfigRateLimiter = RateLimiter.create(m_configUtil.getLoadConfigQPS());
m_configNeedForceRefresh = new AtomicBoolean(true);
m_loadConfigFailSchedulePolicy = new ExponentialSchedulePolicy(m_configUtil.getOnErrorRetryInterval(),
m_configUtil.getOnErrorRetryInterval() * 8);
this.schedulePeriodicRefresh(); //启动定时刷新配置（默认每5分钟）
this.scheduleLongPollingRefresh(); //启动配置更新监听，longPolling实现，默认20秒超时重拉
}
@Override
public Properties getConfig() {
//首次（比如启动时）初始化拉取
if (m_configCache.get() == null) {
long start = System.currentTimeMillis();
//核心方法sync
this.sync();
Tracer.logEvent(APOLLO_CLIENT_NAMESPACE_FIRST_LOAD_SPEND+":"+m_namespace,
String.valueOf(System.currentTimeMillis() - start));
}
return transformApolloConfigToProperties(m_configCache.get());
}
@Override
public void setUpstreamRepository(ConfigRepository upstreamConfigRepository) {
//remote config doesn't need upstream
}
@Override
public ConfigSourceType getSourceType() {
return ConfigSourceType.REMOTE;
}
private void schedulePeriodicRefresh() {
logger.debug("Schedule periodic refresh with interval: {} {}",
m_configUtil.getRefreshInterval(), m_configUtil.getRefreshIntervalTimeUnit());
m_executorService.scheduleAtFixedRate(
new Runnable() {
@Override
public void run() {
Tracer.logEvent(APOLLO_CONFIGSERVICE, String.format("periodicRefresh: %s", m_namespace));
logger.debug("refresh config for namespace: {}", m_namespace);
trySync();
Tracer.logEvent(APOLLO_CLIENT_VERSION, Apollo.VERSION);
}
}, m_configUtil.getRefreshInterval(), m_configUtil.getRefreshInterval(),
m_configUtil.getRefreshIntervalTimeUnit());
}
//核心方法，从远端同步配置并通知更新
@Override
protected synchronized void sync() {
Transaction transaction = Tracer.newTransaction("Apollo.ConfigService", "syncRemoteConfig");
try {
ApolloConfig previous = m_configCache.get();
//从config service拉取配置
ApolloConfig current = loadApolloConfig();
//reference equals means HTTP 304
//没更新则不用去置换老配置
if (previous != current) {
logger.debug("Remote Config refreshed!");
m_configCache.set(current);
//通知listen去更新，目前只有localfileRepository更新本地文件这个操作
this.fireRepositoryChange(m_appId, m_namespace, this.getConfig());
}
if (current != null) {
Tracer.logEvent(String.format(APOLLO_CLIENT_CONFIGS+"%s", current.getNamespaceName()),
current.getReleaseKey());
}
transaction.setStatus(Transaction.SUCCESS);
} catch (Throwable ex) {
transaction.setStatus(ex);
throw ex;
} finally {
transaction.complete();
}
}
private Properties transformApolloConfigToProperties(ApolloConfig apolloConfig) {
Properties result = propertiesFactory.getPropertiesInstance();
result.putAll(apolloConfig.getConfigurations());
return result;
}
//实际拉取apollo配置的方法，往config-service的/{appId}/{clusterName}/{namespace:.+} 接口拉取配置
private ApolloConfig loadApolloConfig() {
if (!m_loadConfigRateLimiter.tryAcquire(5, TimeUnit.SECONDS)) {
//wait at most 5 seconds
try {
TimeUnit.SECONDS.sleep(5);
} catch (InterruptedException e) {
}
}
String appId = this.m_appId;
String cluster = m_configUtil.getCluster();
String dataCenter = m_configUtil.getDataCenter();
String secret = m_configUtil.getAccessKeySecret(appId);
Tracer.logEvent(APOLLO_CLIENT_CONFIGMETA, STRING_JOINER.join(appId, cluster, m_namespace));
int maxRetries = m_configNeedForceRefresh.get() ? 2 : 1;
long onErrorSleepTime = 0; // 0 means no sleep
Throwable exception = null;
List<ServiceDTO> configServices = getConfigServices();
String url = null;
retryLoopLabel:
for (int i = 0; i < maxRetries; i++) {
List<ServiceDTO> randomConfigServices = Lists.newLinkedList(configServices);
Collections.shuffle(randomConfigServices);
//Access the server which notifies the client first
if (m_longPollServiceDto.get() != null) {
randomConfigServices.add(0, m_longPollServiceDto.getAndSet(null));
}
for (ServiceDTO configService : randomConfigServices) {
if (onErrorSleepTime > 0) {
logger.warn(
"Load config failed, will retry in {} {}. appId: {}, cluster: {}, namespaces: {}",
onErrorSleepTime, m_configUtil.getOnErrorRetryIntervalTimeUnit(), appId, cluster, m_namespace);
try {
m_configUtil.getOnErrorRetryIntervalTimeUnit().sleep(onErrorSleepTime);
} catch (InterruptedException e) {
//ignore
}
}
url = assembleQueryConfigUrl(configService.getHomepageUrl(), appId, cluster, m_namespace,
dataCenter, m_remoteMessages.get(), m_configCache.get());
logger.debug("Loading config from {}", url);
HttpRequest request = new HttpRequest(url);
if (!StringUtils.isBlank(secret)) {
Map<String, String> headers = Signature.buildHttpHeaders(url, appId, secret);
request.setHeaders(headers);
}
Transaction transaction = Tracer.newTransaction("Apollo.ConfigService", "queryConfig");
transaction.addData("Url", url);
try {
HttpResponse<ApolloConfig> response = m_httpClient.doGet(request, ApolloConfig.class);
m_configNeedForceRefresh.set(false);
m_loadConfigFailSchedulePolicy.success();
transaction.addData("StatusCode", response.getStatusCode());
transaction.setStatus(Transaction.SUCCESS);
if (response.getStatusCode() == 304) {
logger.debug("Config server responds with 304 HTTP status code.");
return m_configCache.get();
}
ApolloConfig result = response.getBody();
if (result != null) {
//配置更新类型，全量更新、增量更新、unknown，目前看这个配置没啥卵用
ConfigSyncType configSyncType = ConfigSyncType.fromString(result.getConfigSyncType());
if (configSyncType == ConfigSyncType.INCREMENTAL_SYNC) {
ApolloConfig previousConfig = m_configCache.get();
Map<String, String> previousConfigurations =
(previousConfig != null) ? previousConfig.getConfigurations() : null;
result.setConfigurations(
mergeConfigurations(previousConfigurations, result.getConfigurationChanges()));
} else if (configSyncType == ConfigSyncType.UNKNOWN) {
String message = String.format(
"Invalid config sync type - %s",
result.getConfigSyncType());
throw new ApolloConfigException(message, exception);
}
}
logger.debug("Loaded config for {}: {}", m_namespace, result);
return result;
} catch (ApolloConfigStatusCodeException ex) {
ApolloConfigStatusCodeException statusCodeException = ex;
//config not found
if (ex.getStatusCode() == 404) {
String message = String.format(
"Could not find config for namespace - appId: %s, cluster: %s, namespace: %s, " +
"please check whether the configs are released in Apollo!",
appId, cluster, m_namespace);
statusCodeException = new ApolloConfigStatusCodeException(ex.getStatusCode(),
message);
Tracer.logEvent(APOLLO_CLIENT_NAMESPACE_NOT_FOUND,m_namespace);
}
Tracer.logEvent(APOLLO_CONFIG_EXCEPTION, ExceptionUtil.getDetailMessage(statusCodeException));
transaction.setStatus(statusCodeException);
exception = statusCodeException;
if(ex.getStatusCode() == 404) {
break retryLoopLabel;
}
} catch (Throwable ex) {
Tracer.logEvent(APOLLO_CONFIG_EXCEPTION, ExceptionUtil.getDetailMessage(ex));
transaction.setStatus(ex);
exception = ex;
} finally {
transaction.complete();
}
// if force refresh, do normal sleep, if normal config load, do exponential sleep
onErrorSleepTime = m_configNeedForceRefresh.get() ? m_configUtil.getOnErrorRetryInterval() :
m_loadConfigFailSchedulePolicy.fail();
}
}
String message = String.format(
"Load Apollo Config failed - appId: %s, cluster: %s, namespace: %s, url: %s",
appId, cluster, m_namespace, url);
throw new ApolloConfigException(message, exception);
}
private void scheduleLongPollingRefresh() {
remoteConfigLongPollService.submit(m_appId, m_namespace, this);
}
//配置发生更新，拉取配置
public void onLongPollNotified(ServiceDTO longPollNotifiedServiceDto, ApolloNotificationMessages remoteMessages) {
m_longPollServiceDto.set(longPollNotifiedServiceDto);
m_remoteMessages.set(remoteMessages);
m_executorService.submit(new Runnable() {
@Override
public void run() {
m_configNeedForceRefresh.set(true);
trySync();
}
});
}
//省略其他代码
}
RemoteConfigLongPollService
RemoteConfigLongPollService是RemoteConfigRepository持有的长轮询执行策略实现，核心是以App维度，长轮询Config-service的/notification/v2接口。获取结果后通知上层监听。
public class RemoteConfigLongPollService {
private static final Logger logger = LoggerFactory.getLogger(RemoteConfigLongPollService.class);
private static final Joiner STRING_JOINER = Joiner.on("+");
private static final Joiner.MapJoiner MAP_JOINER = Joiner.on("&").withKeyValueSeparator("=");
private static final Escaper queryParamEscaper = UrlEscapers.urlFormParameterEscaper();
private static final long INIT_NOTIFICATION_ID = -1L;
private static final int LONG_POLLING_READ_TIMEOUT = 90000;
private final ExecutorService m_longPollingService = Executors.newCachedThreadPool(ApolloThreadFactory.create("RemoteConfigLongPollService", true));
private final AtomicBoolean m_longPollingStopped = new AtomicBoolean(false);
private SchedulePolicy m_longPollFailSchedulePolicyInSecond = new ExponentialSchedulePolicy(1L, 120L);
private RateLimiter m_longPollRateLimiter;
private final ConcurrentMap<String, Boolean> m_longPollStarted = new ConcurrentHashMap();
private final Map<String, Multimap<String, RemoteConfigRepository>> m_longPollNamespaces = Maps.newConcurrentMap();
private final Table<String, String, Long> m_notifications = Tables.synchronizedTable(HashBasedTable.create());
private final Map<String, ApolloNotificationMessages> m_remoteNotificationMessages = Maps.newConcurrentMap();
private Type m_responseType = (new TypeToken<List<ApolloConfigNotification>>() {
}).getType();
private static final Gson GSON = new Gson();
private ConfigUtil m_configUtil = (ConfigUtil)ApolloInjector.getInstance(ConfigUtil.class);
private HttpClient m_httpClient = (HttpClient)ApolloInjector.getInstance(HttpClient.class);
private ConfigServiceLocator m_serviceLocator = (ConfigServiceLocator)ApolloInjector.getInstance(ConfigServiceLocator.class);
private final ConfigServiceLoadBalancerClient configServiceLoadBalancerClient = (ConfigServiceLoadBalancerClient)ServiceBootstrap.loadPrimary(ConfigServiceLoadBalancerClient.class);
public RemoteConfigLongPollService() {
this.m_longPollRateLimiter = RateLimiter.create((double)this.m_configUtil.getLongPollQPS());
}
public boolean submit(String appId, String namespace, RemoteConfigRepository remoteConfigRepository) {
Multimap<String, RemoteConfigRepository> repositoryMultimap = (Multimap)this.m_longPollNamespaces.computeIfAbsent(appId, (k) -> Multimaps.synchronizedSetMultimap(HashMultimap.create()));
boolean result = repositoryMultimap.put(namespace, remoteConfigRepository);
this.m_notifications.put(appId, namespace, -1L);
if (this.m_longPollStarted.get(appId) == null) {
this.startLongPolling(appId);
}
return result;
}
//执行longPolling
private void startLongPolling(final String sysAppId) {
if (!Boolean.TRUE.equals(this.m_longPollStarted.putIfAbsent(sysAppId, true))) {
try {
final String cluster = this.m_configUtil.getCluster();
final String dataCenter = this.m_configUtil.getDataCenter();
final String secret = this.m_configUtil.getAccessKeySecret(sysAppId);
final long longPollingInitialDelayInMills = this.m_configUtil.getLongPollingInitialDelayInMills();
this.m_longPollingService.submit(new Runnable() {
public void run() {
if (longPollingInitialDelayInMills > 0L) {
try {
RemoteConfigLongPollService.logger.debug("Long polling will start in {} ms.", longPollingInitialDelayInMills);
TimeUnit.MILLISECONDS.sleep(longPollingInitialDelayInMills);
} catch (InterruptedException var2) {
}
}
RemoteConfigLongPollService.this.doLongPollingRefresh(sysAppId, cluster, dataCenter, secret);
}
});
} catch (Throwable ex) {
this.m_longPollStarted.remove(sysAppId);
ApolloConfigException exception = new ApolloConfigException("Schedule long polling refresh failed", ex);
Tracer.logError(exception);
logger.warn(ExceptionUtil.getDetailMessage(exception));
}
}
}
void stopLongPollingRefresh() {
this.m_longPollingStopped.compareAndSet(false, true);
}
//执行longPolling核心方法
// 1. longPolling监听配置
// 2. 如果返回200，则说明配置有更新，拉取更新了的namespace的remoteRepository
// 3. 执行notify方法，回调对应RemoteConfigRepository的onLongPollNotified方法，触发更新
private void doLongPollingRefresh(String appId, String cluster, String dataCenter, String secret) {
ServiceDTO lastServiceDto = null;
while(!this.m_longPollingStopped.get() && !Thread.currentThread().isInterrupted()) {
if (!this.m_longPollRateLimiter.tryAcquire(5L, TimeUnit.SECONDS)) {
try {
TimeUnit.SECONDS.sleep(5L);
} catch (InterruptedException var18) {
}
}
Transaction transaction = Tracer.newTransaction("Apollo.ConfigService", "pollNotification");
String url = null;
try {
if (lastServiceDto == null) {
lastServiceDto = this.resolveConfigService();
}
url = this.assembleLongPollRefreshUrl(lastServiceDto.getHomepageUrl(), appId, cluster, dataCenter, this.m_notifications.row(appId));
logger.debug("Long polling from {}", url);
HttpRequest request = new HttpRequest(url);
request.setReadTimeout(90000);
if (!StringUtils.isBlank(secret)) {
Map<String, String> headers = Signature.buildHttpHeaders(url, appId, secret);
request.setHeaders(headers);
}
transaction.addData("Url", url);
HttpResponse<List<ApolloConfigNotification>> response = this.m_httpClient.doGet(request, this.m_responseType);
logger.debug("Long polling response: {}, url: {}", response.getStatusCode(), url);
if (response.getStatusCode() == 200 && response.getBody() != null) {
//更新m_notifications table，在发送longPolling请求时，以appid维度向config-service监听更新通知
this.updateNotifications(appId, (List)response.getBody());
//更新m_remoteNotificationMessages map，用于给上层Repository更新数据
this.updateRemoteNotifications((List)response.getBody());
transaction.addData("Result", ((List)response.getBody()).toString());
this.notify(appId, lastServiceDto, (List)response.getBody());
}
if (response.getStatusCode() == 304 && ThreadLocalRandom.current().nextBoolean()) {
lastServiceDto = null;
}
this.m_longPollFailSchedulePolicyInSecond.success();
transaction.addData("StatusCode", response.getStatusCode());
transaction.setStatus("0");
} catch (Throwable ex) {
lastServiceDto = null;
Tracer.logEvent("ApolloConfigException", ExceptionUtil.getDetailMessage(ex));
transaction.setStatus(ex);
long sleepTimeInSecond = this.m_longPollFailSchedulePolicyInSecond.fail();
if (ex.getCause() instanceof SocketTimeoutException) {
Tracer.logEvent("Apollo.Client.NamespaceTimeout", this.assembleNamespaces(appId));
}
logger.warn("Long polling failed, will retry in {} seconds. appId: {}, cluster: {}, namespaces: {}, long polling url: {}, reason: {}", new Object[]{sleepTimeInSecond, appId, cluster, this.assembleNamespaces(appId), url, ExceptionUtil.getDetailMessage(ex)});
try {
TimeUnit.SECONDS.sleep(sleepTimeInSecond);
} catch (InterruptedException var17) {
}
} finally {
transaction.complete();
}
}
}
private void notify(String appId, ServiceDTO lastServiceDto, List<ApolloConfigNotification> notifications) {
//1. 找到AppId对应的RemoteConfigRepository
//2. 获取config-service返回的通知，ApolloNotificationMessages（格式是 namespace， 通知id）
//3. 回调RemoteConfigRepository，参数是调用的config-service连接信息和ApolloNotificationMessages
}
//省略其他方法
}
总结
以上就是client接受配置的流程，默认实现是监听MySQL数据表的更新，并发布消息。
client端通过长轮询去刷新本地数据。
